B22-008 | Carbon fiber fabrics laminate 12k with BIOPA – 480 g/m2

SKU: B22-008 Category:
  • Tax not included.
  • For a different width or grammage, please contact us.
  • Price €/m2: 52,30€

5,00 5.229,64  Tax not included

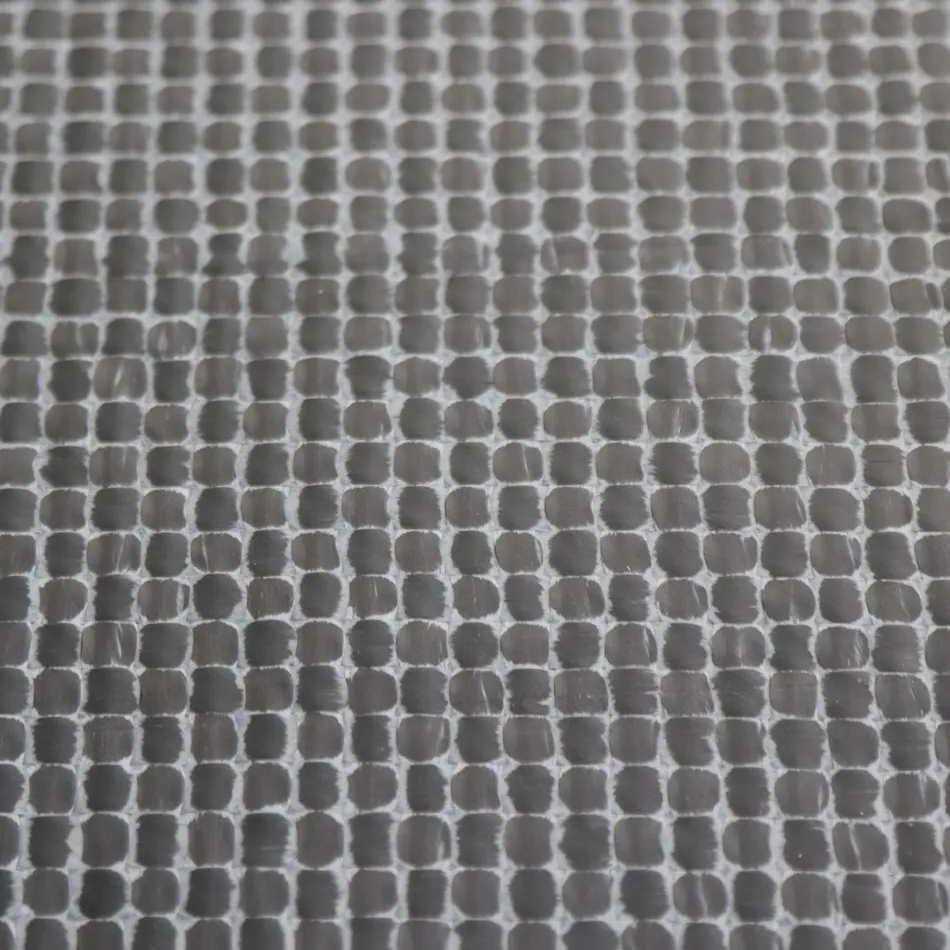

The B22-008 BLACKPREPEG 12K PL 480 is a high-performance thermoplastic prepreg featuring a bidirectional 12K carbon fiber fabric laminated with a 200g/m² BIOPA film. This fabric is designed for demanding applications, providing excellent flexibility and ease of handling.

Physical Properties:

  • Fiber Areal Weight (FAW): 280 g/m²
  • Weight per Ply (PAW): 480 g/m²
  • Resin Content by Weight: 42% BIOPA
  • Moisture Pick Up: 0.8% (Kept in water for 28 days at 23ºC)
  • Consolidated Ply Thickness (CPT): 0.27 mm

Fabric Design:

  • Fiber Type: 12K Carbon Fiber
  • Matrix: Bio-PA
  • Pattern: Plain
  • Width: 100 cm (Contact us for special widths)
  • Density: 1.7 picks/cm

Typical Neat Resin Properties:

  • Density: 1.13 g/cm³
  • Tg: 63ºC
  • Tm (Melt): 215ºC
  • Tp (Processing): 250ºC

Main Features:

  • Flexible and easy to cut
  • Suitable for aesthetic applications
  • Consistent properties in both directions (0º/90º)

Typical Applications:

  • Automotive industry
  • Renewable power sector
  • Medical devices
  • Aesthetic products
