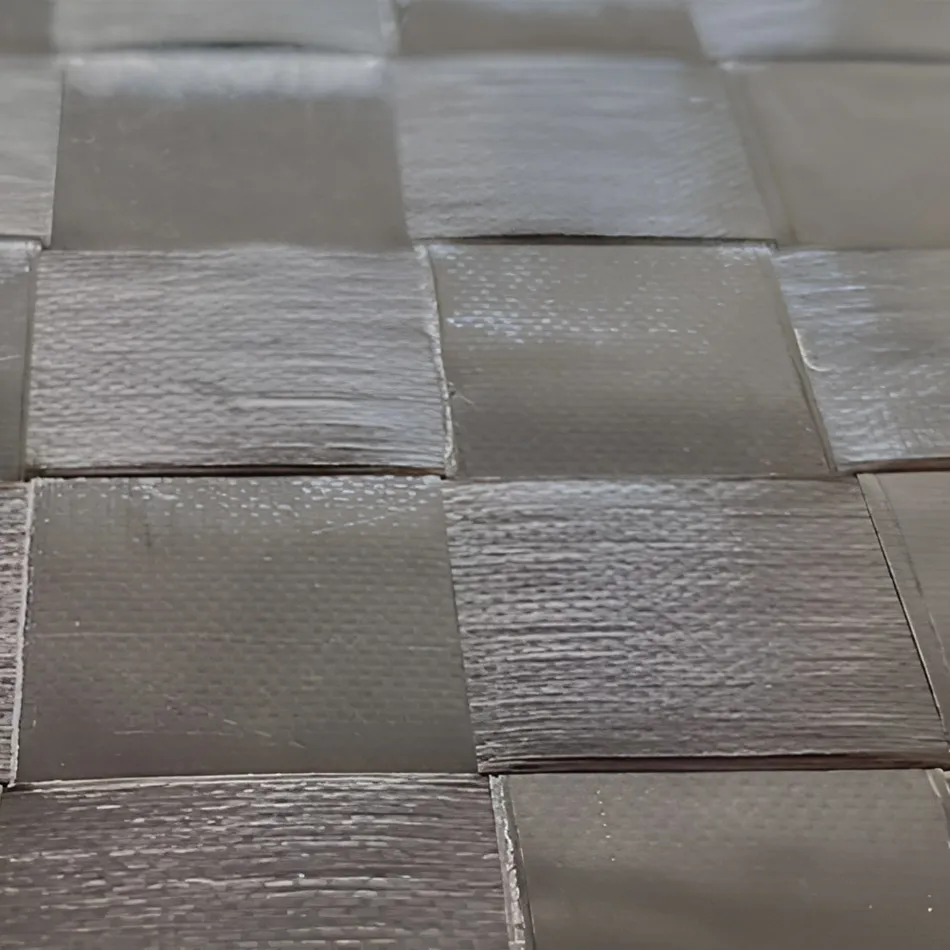

The B23-002 TAP-CF/BIOPA-16MM-PL-300 is a high-performance bidirectional fabric that combines 16mm carbon tapes with a bio-based polyamide matrix. This fabric is engineered for high-demand applications, providing excellent flexibility and ease of handling.
Properties:
- Fiber Areal Weight (FAW): 150 g/m²
- Weight per Ply (PAW): 300 g/m²
- Resin Content by Weight: 50% BIOPA
- Moisture Pick Up: 0.8% (Kept in water for 28 days at 23ºC)
- Consolidated Ply Thickness (CPT): 0.16 mm
Fabric Design:
- Fiber Type: Carbon Fiber
- Pattern: Plain
- Tape Width: 16 mm
- Fabric Width: 100 up to 200 cm (Contact us for special widths)
- Density: 0.6 picks/cm
Typical Neat Resin Properties:
- Density: 1.13 g/cm³
- Tg: 63ºC
- Tm (Melt): 215ºC
- Tp (Processing): 260ºC
Main Features:
- Flexible
- Recyclable
- Short time processing
- Easy to manipulate and cut
- Can be stored at room temperature
Typical Applications:
- Sports goods
- Automotive industry
- Renewable power sector
