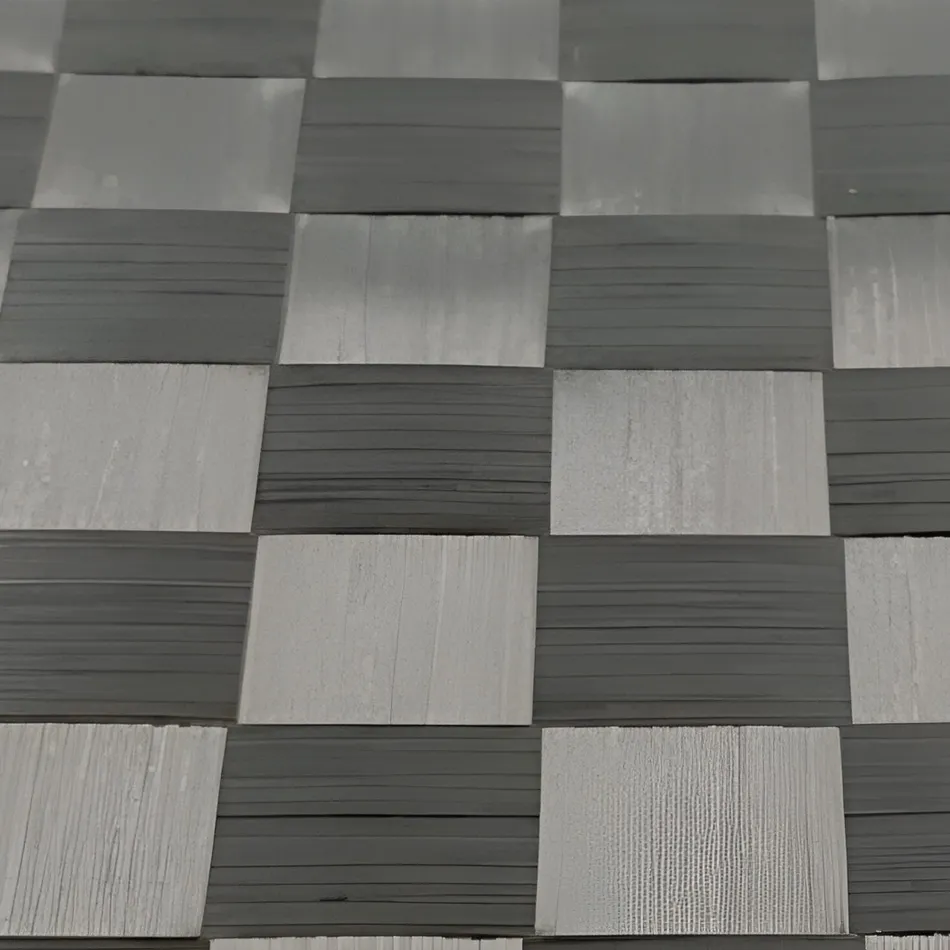

B23-001 | Carbon taped fabrics with PPA – 450 g/m2

SKU: B23-001 Category:
  • Tax not included.
  • For a different width or grammage, please contact us.
  • Price €/m2: 37,85€

5,00 1.892,53  Tax not included

The B23-001 TAP-CF/PPA-12MM-PL-450 is a high-performance bidirectional fabric that combines 12.7mm carbon tapes with a PPA matrix. This fabric is engineered for high-demand applications, providing excellent flexibility and ease of handling.

Properties:

  • Fiber Areal Weight (FAW): 270 g/m²
  • Weight per Ply (PAW): 450 g/m²
  • Resin Content by Weight: 40% PPA
  • Moisture Pick Up: 2.9% (70ºC water saturation)
  • Consolidated Ply Thickness (CPT): 0.18 mm

Fabric Design:

  • Fiber Type: Carbon Fiber
  • Matrix: PPA
  • Pattern: Plain
  • Tape Width: 12.7 mm
  • Fabric Width: 100 up to 200 cm (Contact us for special widths)
  • Density: 0.7 picks/cm

Mechanical Data:

  • Tensile Strength: 1180 MPa (EN ISO 527)
  • Tensile Modulus: 78 GPa (EN ISO 527)
  • Flexural Strength: 909 MPa (EN ISO 14125)
  • Flexural Modulus: 62 GPa (EN ISO 14125)
  • Elongation: 1.4%

Typical Neat Resin Properties:

  • Density: 1.15 g/cm³
  • Tg: 140ºC
  • Tm (Melt): 258ºC
  • Tp (Processing): 280ºC

Main Features:

  • Lightweight
  • Recyclable
  • Short time processing
  • Easy to manipulate and cut
  • Low water absorption

Typical Applications:

  • Sports goods
  • Automotive industry
  • Renewable power sector
