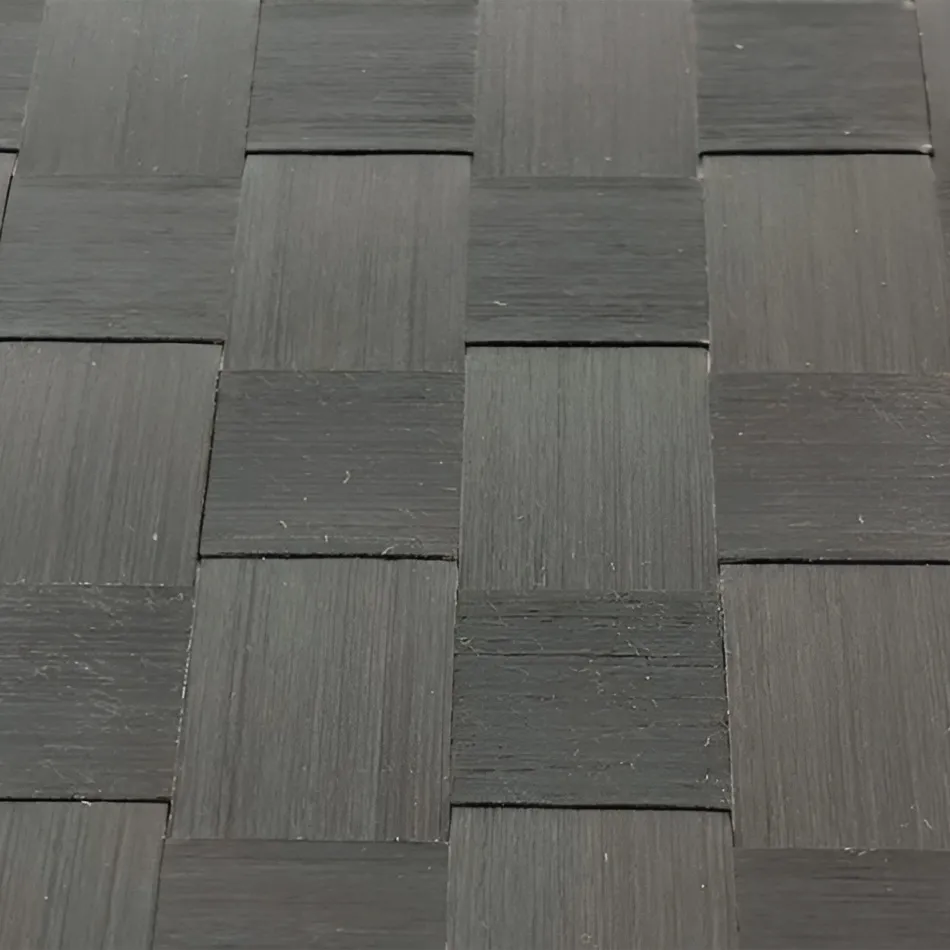

The B23-008 TAP-CF/PC-12MM-PL-460 is a high-performance bidirectional fabric that combines 12mm spread tow carbon tapes with a PC (Polycarbonate) matrix. This fabric is engineered for demanding applications, providing excellent flexibility and ease of handling.
Properties:
- Fiber Areal Weight (FAW): 226 g/m²
- Weight per Ply (PAW): 460 g/m²
- Resin Content by Weight: 52%
- Moisture Pick Up: 2.9% (70ºC water saturation)
- Consolidated Ply Thickness (CPT): 0.45 mm
Fabric Design:
- Fiber Type: Carbon Fiber
- Pattern: Plain
- Tape Width: 12 mm
- Fabric Width: 100 up to 200 cm (Contact us for special widths)
- Density: 0.7 picks/cm
Typical Neat Resin Properties:
- Density: 1.15 g/cm³
- Tg: 140ºC
- Tm (Melt): 258ºC
- Tp (Processing): 280ºC
Main Features:
- Recyclable
- Short time processing
- Easy to manipulate and cut
- Great surface finish for aesthetic applications
Typical Applications:
- Sports goods
- Automotive industry
- Railway sector
