B24-009 | Carbon commingled fabric 12k with PP – 570 g/m2

SKU: B24-009 Category:
  • Tax not included.
  • For a diferente width or grammage, please contact us.
  • Price €/m2: 27,23€

5,00 1.361,70  Tax not included

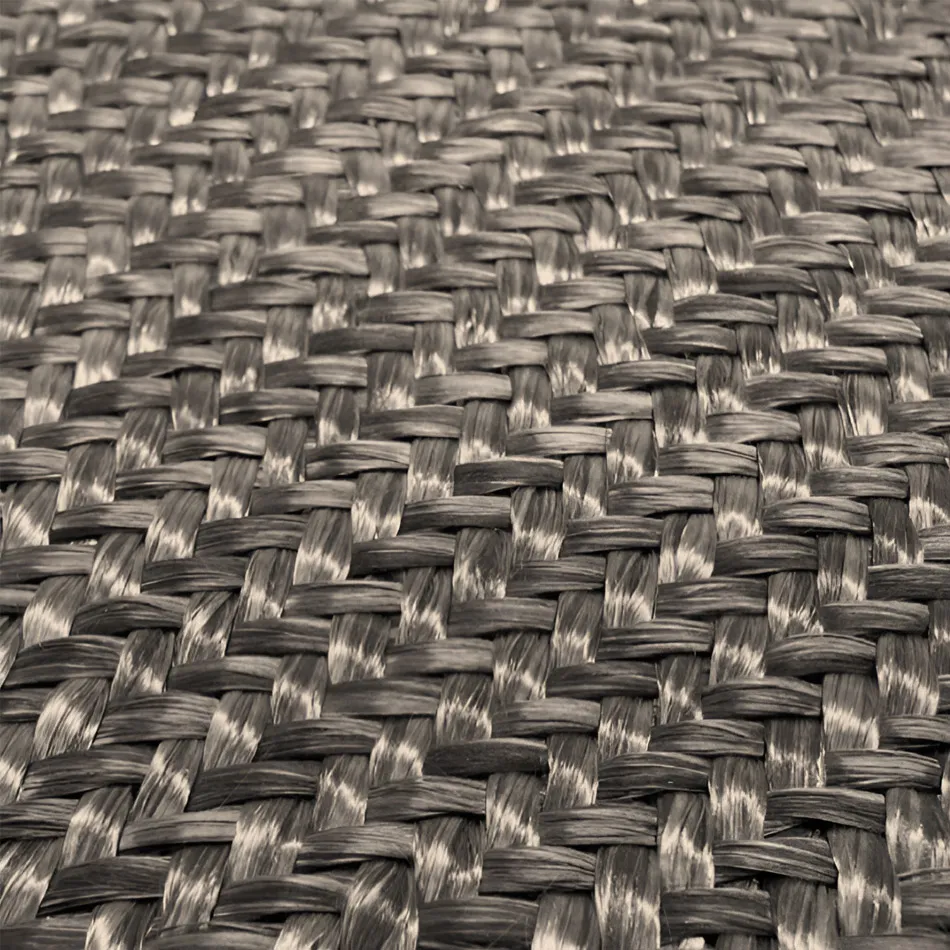

The B24-009 COM-12KCF-PP-1195T-TW-574 is a high-performance thermoplastic prepreg featuring a bidirectional Twill 2/2 pattern made with 12K CF/PP hybrid yarns. This fabric is designed for demanding applications, offering excellent flexibility and ease of handling.

Properties:

  • Fiber Areal Weight (FAW): 365 g/m²
  • Weight per Ply (PAW): 574 g/m²
  • Resin Content by Weight: 36% PP
  • Consolidated Ply Thickness (CPT): 0.45 mm

Fabric Design:

  • Fiber Type: CF/PP
  • Pattern: Twill 2/2
  • Width: 100 cm (Contact us for special widths)
  • Density: 2.4 picks/cm

Typical Neat Resin Properties:

  • Density: 0.90 g/cm³
  • Tm (Melt): 160ºC
  • Tp (Processing): 190ºC

Main Features:

  • Flexible
  • Recyclable
  • Short time processing
  • Easy to manipulate and cut

Typical Applications:

  • Sports goods
  • Automotive industry
