B24-011 | Carbon commingled fabric 3k with PC – 300 g/m2

SKU: B24-011 Category:
  • Tax not included.
  • For a diferente width or grammage, please contact us.
  • Price €/m2:  61,92€

5,00 3.096,06  Tax not included

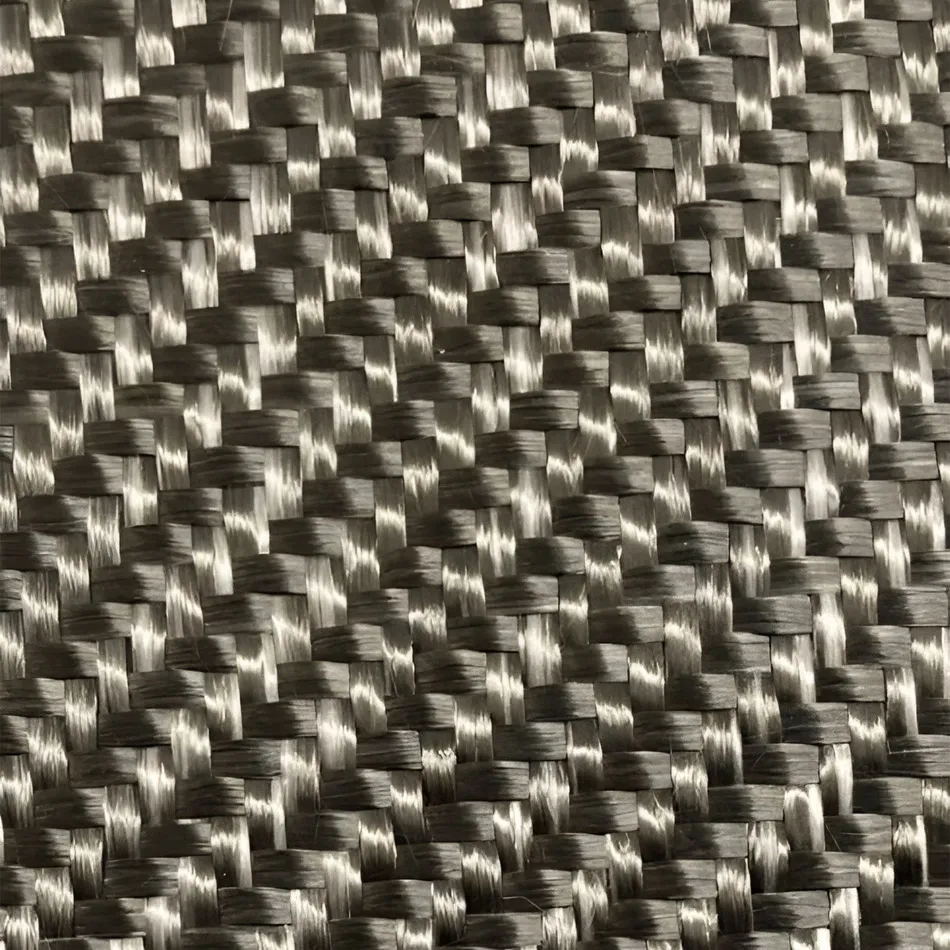

The B24-011 COM-3KCF-PC-300T-TW-300 is a high-performance thermoplastic prepreg featuring a bidirectional Twill 2/2 pattern made with 3K CF/PC hybrid yarns. This fabric is designed for demanding applications, offering excellent flexibility and ease of handling.

Properties:

  • Fiber Areal Weight (FAW): 192 g/m²
  • Weight per Ply (PAW): 300 g/m²
  • Resin Content by Weight: 36% PC
  • Consolidated Ply Thickness (CPT): 0.18 mm

Fabric Design:

  • Fiber Type: CF/PC
  • Pattern: Twill 2/2
  • Width: 100 cm (Contact us for special widths)
  • Density: 5 picks/cm

Typical Neat Resin Properties:

  • Density: 1.2 g/cm³
  • Tg: 140ºC
  • Tm (Melt): 258ºC
  • Tp (Processing): 290ºC

Main Features:

  • Flexible
  • Recyclable
  • Short time processing
  • Easy to manipulate and cut

Typical Applications:

  • Sports goods
  • Automotive industry
  • Renewable power sector
  • Aesthetic products
